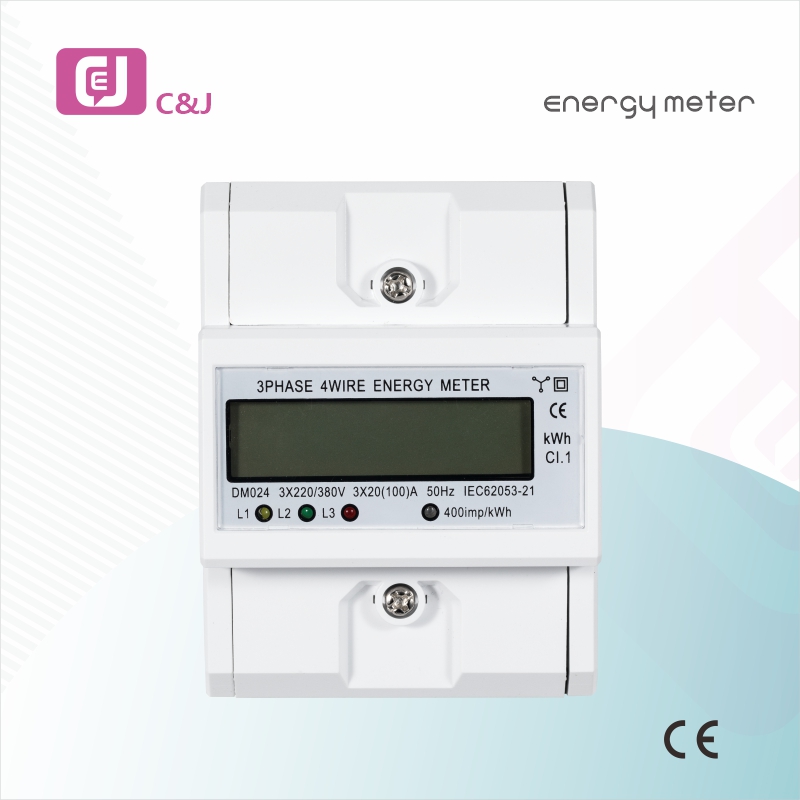

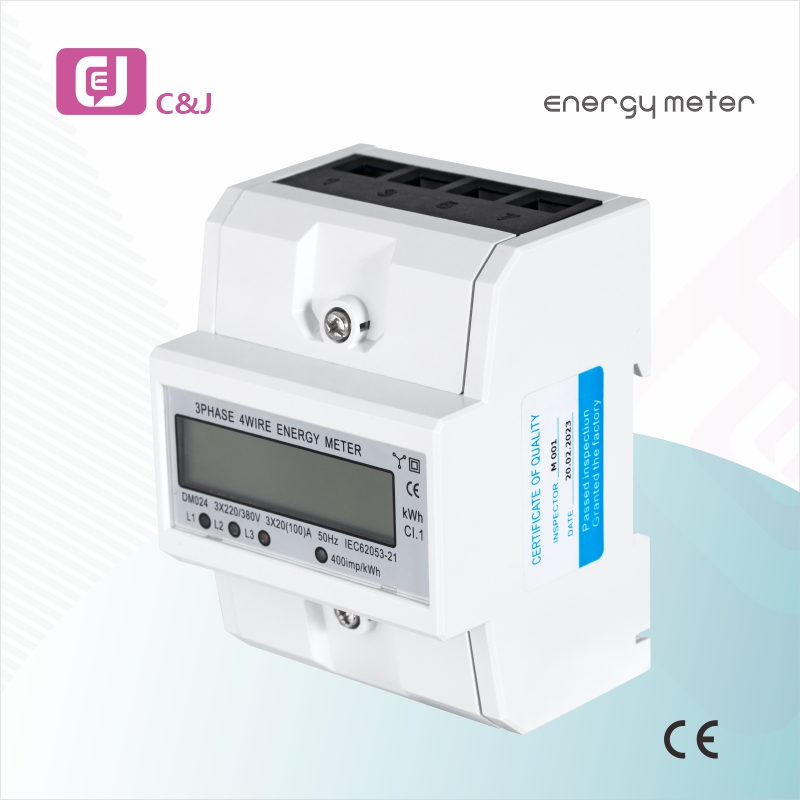

China Factory Wholesale Smart 3 Phase 4 Wire Energy Meter with Large LCD Screen Display

DM024 is a three phase prepaid electricity meter. It has Infrared and RS485 Communication that complies with EN50470-1/3 and Modbus Protocol. This three phase kwh meter not only measures active and reactive energy, but also can be set 3 measurement modes according to the synthesis code. RS485 communication is suitable for the centralized installation of electric meters in a small or medium scale. It is a cost-effective choice for AMI (Automatic Metering Infrastructure) system and remote data monitoring. This energy meter RS485 support max demand, programmable four tariffs and friendly hours. The LCD display meter has 3 display patterns: pressing buttons, scroll display and automatic display through IR. Additionally, this meter has features like tamper detection, accuracy class 1.0, compact size and easy installation. DM024 is a hot-sale due to its quality assurance and system support. If you need an energy monitor or industrial check meter for your production line, the Modbus smart meter is a considerable product.

Products Details

Feature

  • Measurement of active and reactive energy, forward and reverse energy (bi-directional measurment), voltage and current
  • IR Communication EN62056 (IEC1107) protocol, RS485 Communication Modbus protocol
  • High Accuracy: Accuracy Class B
  • Four tariff optional, support setting friendly hours during holiday or weekend
  • Tamper detection function
  • 3 LCD display patterns: pressing buttons, scroll display and automatic display through IR
  • LCD displays various events such as total energy, active and reactive energy, 3 phases voltage, 3 phases current, power, power factor, frequency and demand


Technical Data

Product Type Three Phase RS485 Energy Meter
Ref. voltage 3*230/400V
Ref. current 0,25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A,5(80)A
Communication Infrared, RS485 Modbus
Impulse constant 1000imp/kWh,1000imp/kVarh
LCD display LCD6+2
Operation temp. -20~+70ºC
Average humidity 85%
Relative humidity 90%
Ref. frequency 50Hz
Accuracy class Class B
Starting current 0.004Ib
Power consumption ≤ 2W,<10VA
