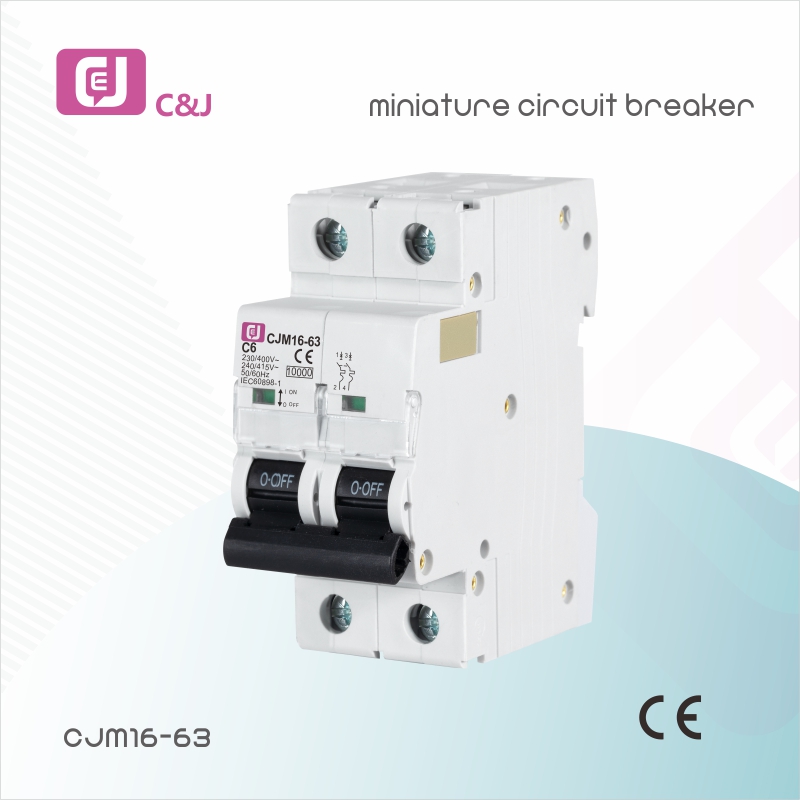

CJM16 1-4P Household MCB Circuit Breaker 1-4p AC230/400V with CE

  • The state-of-art design
  • Elegant appearance; cover and handle in arc shape make comfortable operation.Contact position indicating window.Transparent cover designed to carry label.
  • Handle central-staying function for circuit fault indicating
  • In case of overload, to protected circuit, MCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operatedmanually.
  • High short-circuit capacity
  • High short-circuit capacity 10KA for whole range and 15kA capacity for current rating up to 40A thanks to the powerful electric arc extinguishing system.Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
  • Handle padlock device
  • MCB handle can be locked either at "ON" position or at"OFF" position to prevent unwanted operation of the product.
  • Screw terminal lock device
  • The lock device prevents unwanted or casual dismounting of connected terminals.
send email to us

Products Details

Technical Data
  • Pole No.: 1, 1P+N, 2, 3, 3P+N, 4
  • Rated voltage: AC 230/400V
  • Rated current (A):1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A
  • Tripping curve: B, C, D
  • High short-circuit breaking capacity (Icn): 10kA
  • Rated service short-circuit breaking capacity(Ics): 7.5kA
  • Rated frequency: 50/60Hz
  • Energy limiting class: 3
  • Rated impulse withstand voltage: 6.2kV
  • Electro-mechanical endurance: 20000
  • Contact position indication
  • Connection terminal:Screw terminal/Pillar terminal with clamp
  • Connection capacity: Rigid conductor up to 25mm²
  • Terminal Connection Height: 19mm
  • Fastening torque: 2.0Nm
  • Installation:On symmetrical DIN rail 35mm/Panel mounting


Power Conumption

Rated Current Range (InA) Max consumption/pole (W)
In≤10 3
10＜In≤16 3.5
16＜In≤25 4.5
25＜In≤32 6
32＜In≤40 7.5
40＜In≤50 9
50＜In≤63 13


Overload Current Protection Characteristics

Test Current Type Test procedure Initial State Tripping or Non-tripping Time Limit Expected Result Remark
A B,C,D 1.13In cold t≤1h no tripping
B B,C,D 1.45In after test a t＜1h tripping Current in the 5s in th increase of stability
C B,C,D 2.55In cold 1s＜t＜60s(In≤32A)/1s＜t＜120s(n＞32A) tripping
D B 3In cold t≥0.1s no tripping Turn on the auxiliary switch to
C 5In
D 10In
E B 5In t＜0.1s tripping Turn on the auxiliary switch to
C 10In cold
D 20In
