Product Features
- FIRMLY FIXED:Ding rail and base mounting isolators can be installed in control boxes, distribution boxes and junction boxes. IP40 protection level (Terminal IP20).
- GOOD CONDUCTION:Self-cleaning contact mechanism, reducing power loss and abrasion, improving the conduction performance, reducing the resistance and energy loss of the switch, extending the lifecycle.
- EASY WIRING:Compact space saving and V-type bridge jumper design make wiring easier even after the body fixed. The installer can choose series or parallel connections freely.
- GOOD ADAPTABILITY:Flame resistant materials from world leading manufacturers, with a isolation class of UL94V-0, is employed, so that under ambient temperatures -40 ºC ~ +70 ºC, the product can work without lowering the loads.
- MODULAR DESIGN:Compact structure and modular design, levels with different versions from 2 to 8 are available.
- APPROVALS:Rated DC voltage up to 1500V, product carries the most important approvals including TUV, CE(IEC/EN60947-3:2009+A1+A2), SAA(AS60947.3), DC-PV1 and DC-PV2. etc.
- ADVANCED MECHANICAL DESIGN:Incorporating a user independent switching action, spring mech-anism, to ensure a very fast break/make action, ensuring that the disconnection of the load circuits and suppression of the arc normally occurs within 3ms.

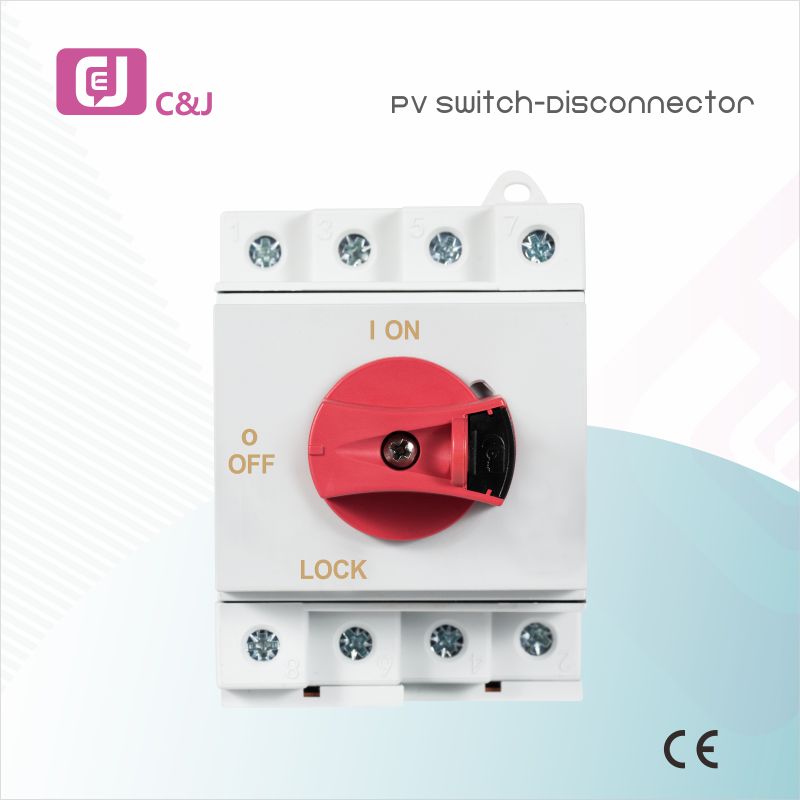

- NON-POLARITY:Non-polarity DC Isolator Switch
Construction and Feature
Data according toIEC/EN60947-3:2009+A1+A2, AS60947.3, Utilization category, DC-PV1, DC-PV2| Main parameters | Type | DB32 | ||
| Rated insulation voltage | U(i) | V | 1500 | |
| Rated thermal current | I(the) | A | 32 | |
| Rated impulse withstand voltage | U(imp) | V | 8000 | |
| Rated short-time withstand current (1s) | I(cw) | 2, 4 | A | 1000 |
| Rated conditional short-circuit current | I(cc) | A | 5000 | |
| Max. fuse size | gL(gG) | A | 80 | |
| Maximum cable cross sections (incl. jumper) | ||||
| Solid or standard | mm² | 4-16 | ||
| Flexible | mm² | 4-10 | ||
| Flexible (+ multicore cable end) | mm² | 4-10 | ||
| Torque | ||||
| Tightening torque terminal screws M4. | Nm | 1.2-1.8 | ||
| Tightening torque shell mounting screws ST4.2(304 stainless steel) | Nm | 0.5-0.7 | ||
| Tightening torque knob screws M3 | Nm | 0.9-1.3 | ||
| Switching on or off torque | Nm | 1.1-1.4 | ||
| Power loss per switch Max | ||||
| 2 | W | 2 | ||
| 4 | W | 4 | ||
| 6 | W | 6 | ||
| 8 | W | 8 | ||
| General parameters | ||||
| Method of mounting | Ding rail mounting and base mounting | |||
| Knob positions | OFF at 9 hr,ON at 12 hr | |||
| Mechanical life | 10000 | |||
| Number of DC poles | 2 or 4( 6/8pole Optional ) | |||
| Operation temperature | ºC | -40 to +70 | ||
| Storage temperature | ºC | -40 to +85 | ||
| Pollution degree | 2 | |||
| Overvoltage category | III | |||
| IP rating of shafting and mounting screws | IP40; Terminal IP20 | |||
