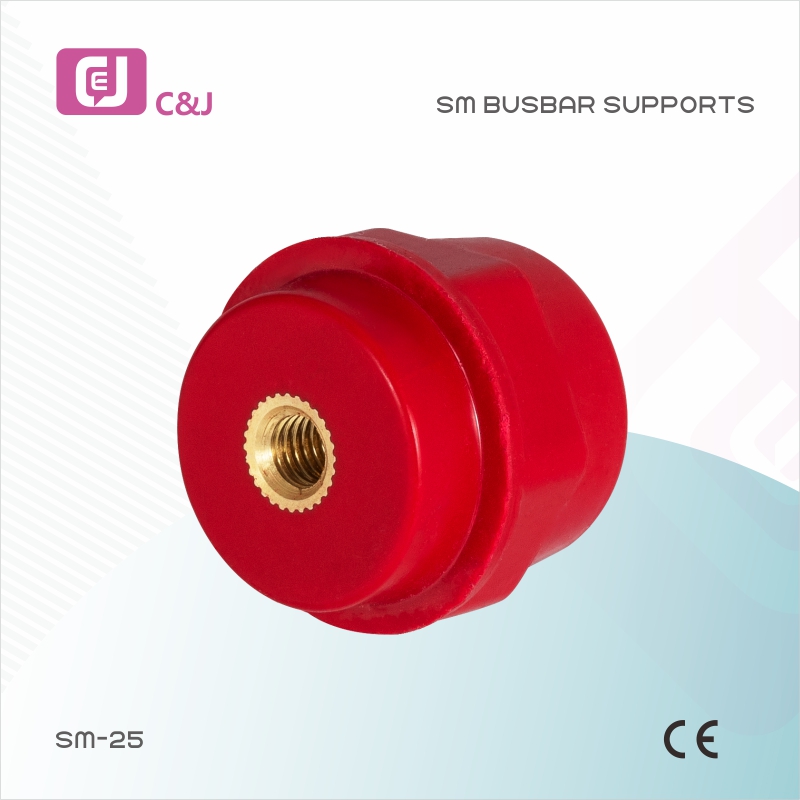

- Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76,SM-7105,SM-7100,SM-7120,SM-7160
- Tensile strength:600LBS
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
Advantages
- The products have excellent insulation properties,high strenght,high temperature resistant,safe and reliable,tated voltage 660V is good choice for low voltage power distribution cabinet fixed bus.
- Using SMC unsaturated resin hot pressing. Mainly used for high and low voltage power distribution cabinet,inverter,power distribution box,supporting the connecting bus etc.
- The product has excellent insulation properties,high strength,high teperature resistant,safe and reliable,rated voltage up to 660V is the best choice for low voltage power distribution cabiner fixed bus.
Technical Data
- Operating temperature:-40--+140
- Insert:Brass.steel with Zn coating
- Material:BMC(bough moulding compound) SMC(sheet moulding compound)
- Color,insert,mateerial in capability accordance with customer need.
| Values | Style | |||||
| SM-25 | SM-30 | SM-35 | SM-40 | SM-51 | SM-76 | |
| Temsile strength(lbs) | 500 | 550 | 600 | 650 | 1000 | 1500 |
| Torgue strength(fr lba) | 6 | 8 | 10 | 10 | 20 | 40 |
| Voltage withstand(kv) | 6 | 8 | 10 | 12 | 15 | 25 |
| Screw(mm) | 6 | 8 | 8 | 8 | 8 | 10 |
| Weight(g) | 28 | 44 | 50 | 56 | 83 | 233 |
| Type | Diameter | Zize | GW/pcs | QTY/box |
| SM25 | M6 | 25X30 | 0.04kg | 20 |
| SM30 | M6 | 30X32 | 0.04kg | 20 |
| SM30 | M8 | 30X32 | 0.04kg | 20 |
| SM35 | M6 | 35X32 | 0.06kg | 10 |
| SM35 | M8 | 35X32 | 0.06kg | 10 |
| SM40 | M8 | 40X40 | 0.09kg | 10 |
| SM51 | M8 | 51X36 | 0.12kg | 10 |
| SM76 | M10 | 76X50 | 0.15kg | 10 |
| SM7105 | M6 | 38X32 | 0.07kg | 10 |
| SM7105 | M8 | 38X32 | 0.07kg | 10 |
| SM7110 | M8 | 45X42 | 0.1kg | 10 |
| SM7110 | M10 | 45X42 | 0.1kg | 10 |
| SM7120X50 | M10 | 51X51 | 0.18kg | 10 |
| SM7120X60 | M10 | 60X54 | 0.2kg | 10 |
