Installation
- Inside: There are the installation holes in the base for circuit board or din rail.
- Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole
Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.Product Parameter
| Design | Specification(mm) | Carton Sizes | G.W(kgs) | Pcs/CTN. | ||
| L(mm) | W(mm) | H(mm) | ||||
| Round | 50x30 | 615 | 310 | 500 | 13.8 | 400 |
| 50x50 | 615 | 310 | 500 | 13.8 | 320 | |
| 80x50 | 530 | 360 | 600 | 14.5 | 240 | |
| Square | 80x80x50 | 490 | 490 | 420 | 15.9 | 200 |
| 85x85x50 | 52 | 400 | 520 | 16.6 | 200 | |
| 100x100x70 | 442 | 360 | 560 | 14.7 | 100 | |
| 150x110x70 | 642 | 390 | 484 | 16.1 | 80 | |
| 150x150x70 | 642 | 390 | 488 | 16.1 | 80 | |
| 200x155x80 | 620 | 410 | 493 | 14.1 | 45 | |
| 200x100x70 | 634 | 365 | 450 | 15 | 60 | |
| 200x200x80 | 620 | 410 | 628 | 14.9 | 45 | |
| 255x200x80 | 650 | 532 | 422 | 20.7 | 32 | |
| 300x250x120 | 620 | 315 | 532 | 10.4 | 10 | |
| 400x350x120 | 640 | 430 | 370 | 9.5 | 5 | |
| Design | Specification(mm) | L(mm) | W(mm) | H(mm) | Holes(mm) | IP Rating |
| Round | 50x30 | 50 | - | 30 | 4 | IP55 |
| 50x50 | 50 | - | 50 | 4 | IP55 | |

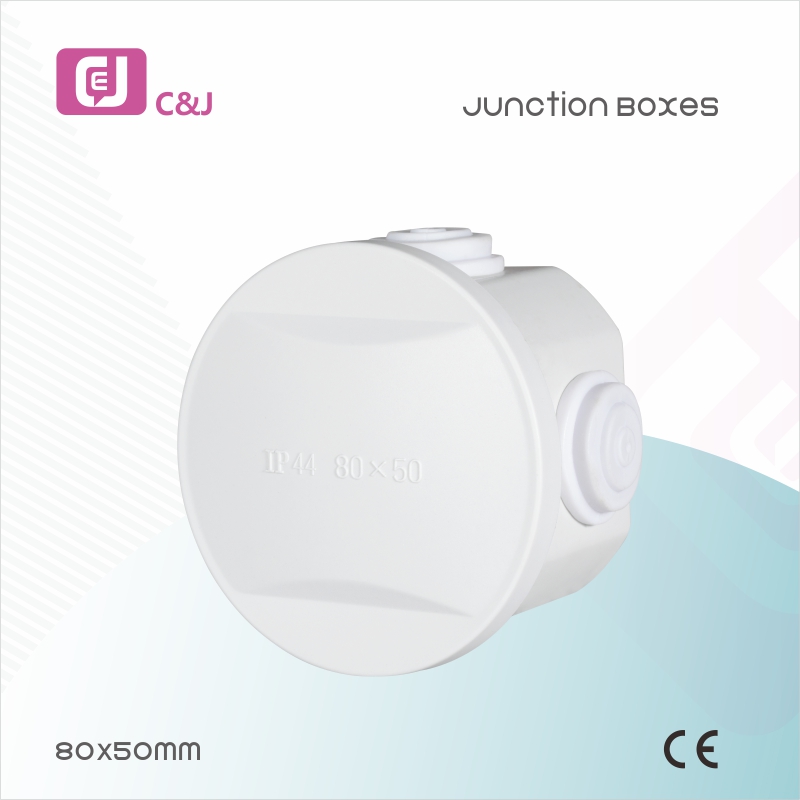

| 80x50 | 80 | - | 50 | 4 | IP55 | |
| Square | 80x80x50 | 80 | 80 | 50 | 4 | IP55 |
| 85x85x50 | 85 | 85 | 50 | 7 | IP55 | |
| 100x100x70 | 100 | 100 | 70 | 7 | IP65 | |
| 150x110x70 | 150 | 110 | 70 | 10 | IP65 | |
| 150x150x70 | 150 | 150 | 70 | 7 | IP65 | |
| 200x155x80 | 200 | 155 | 80 | 10 | IP65 | |
| 200x100x70 | 200 | 100 | 70 | 8 | IP65 | |
| 200x200x80 | 200 | 200 | 80 | 12 | IP65 | |
| 255x200x80 | 255 | 200 | 80 | 12 | IP65 | |
| 300x250x120 | 300 | 250 | 120 | 12 | IP65 | |
| 400x350x120 | 400 | 350 | 120 | 16 | IP65 |
