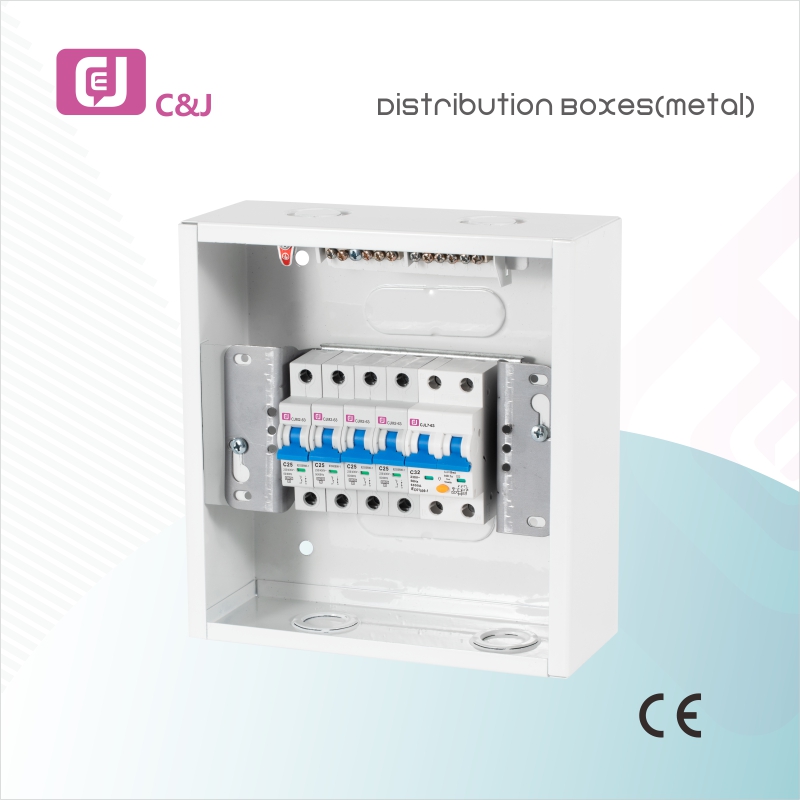

CJDB Electrical Circuit Breaker Distribution Box Consumer Unit for Power Supply Cabinet

CJDB series distribution box, also called distribution board, is mainly composed of the casing and modular terminal apparatus, suitable for ac 50/60Hz, and rated voltage of 230V. The load current is less than 100A single-phase three-wire terminal of the circuit. We use it to control power distribution, electrical equipment, online overload, short circuit, and leakage protection.
send email to us

Products Details

Description

CJDB series distribution box (hereinafter referred to as distribution box) is mainly composed of a shell and the modular terminal device. It is suitable for single-phase three-wire terminal circuits with AC 50 / 60Hz, rated voltage 230V, and load current less than 100A. It can be widely used on various occasions for overload, short circuit, and leakage protection while controlling power distribution and electrical equipment CEJIA,your best electrical distribution box manufacturer! If you need any distribution boxes, please feel free to contact us!

Construction and Feature

1.Rigid, Raised and Offset DIN rail design 2.Earth and neutral blocks fixed as standard 3.Insulated comb busbar & neutral cable included 4.All metal parts are protected of grounding 5.Compliance to BS/EN 61439-3 6.Current Rating: 100A 7.Metallic Compact Consumer Unit 8.IP3X Safety 9.Multiple cable entry knockouts

Packaging Details

normal exporting packaging or customer's design Delivery Time 7-15

Models and Specifications

The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

Please Notice

Price offer only for the metal consumer unit. the Switches, circuit breakers and RCD is not inclusded.

Product Parameter

Parts No. Description Usable Ways
CJDB-4W 4Way metal distribution box 4
CJDB-6W 6Way metal distribution box 6
CJDB-8W 8Way metal distribution box 8
CJDB-10W 10Way metal distribution box 10
CJDB-12W 12Way metal distribution box 12
CJDB-14W 14Way metal distribution box 14
CJDB-16W 16Way metal distribution box 16
CJDB-18W 18Way metal distribution box 18
CJDB-20W 20Way metal distribution box 20
CJDB-22W 22Way metal distribution box 22

Parts No Width(mm) Hight(mm) Depth(mm) Carton Size(mm) Qty/CTN
CJDB-4W 130 240 114 490X280X262 8
CJDB-6W 160 240 114 490X340X262 8
CJDB-8W 232 240 114 490X367X262 6
CJDB-10W 232 240 114 490X367X262 6
CJDB-12W 304 240 114 490X320X262 4
CJDB-14W 304 240 114 490X320X262 4
CJDB-16W 376 240 114 490X391X262? 4
CJDB-18W 376 240 114 490X391X262 4
CJDB-20W 448 240 114 370X465X262 3
CJDB-22W 448 240 114 370X465X262 3


Our Advantages

  • Flexibility:small orders are acceptable for quick delivery
  • High quality due to first-hand control in factory.
  • Competitive price directly from in housing plant.
  • Quick Response and quickly action within in 24 hours.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
